Arinc 429 Label Definitions

There are some differences among the labels as you go from the original arinc 429p1 15 speciﬁcation to the gama arinc 429 speciﬁcation and most equipment conﬁguration routines will reﬂect this. Datair 400m3 label definition serial communication software is a tool for defining custom labels on your pc for use on your datair 400m3although it is possible to define custom labels on the datair 400m3 directly some customers prefer to do this on a pc and then download these definitions to their datair 400m3.

Rt6512 Aviation Vhf Am Transceiver User Manual Rt6512 Becker Ideas

Gama publication 11 arinc 429 general aviation subset comments.

Arinc 429 label definitions. 1 about this manual. Published july 1 1990. Formatting of the data bits indeed the entire arinc 429 word is very flexible.

The 5 parts of data words on the arinc 429 labels list. With a better understanding of the purpose of the individual components of the data words logged in the arinc 429 labels list you will be able to use this protocol to achieve everything it was designed to accomplish. In the early 1980s the arinc committee decided to take.

Label 371 is used to identify the equipment by manufac turer. This manual was developed to provide a general overview of the arinc429 specification its characteristics and applications. Arinc technical standard for the predominant avionics data bus used on most higher end commercial and transport aircraft.

The system has become clearer and easier to use for those wishing to harness the power of symbolic decode. Who is responsible for its modification and distribution. These label codes are a supplement to and not a replacement for the label codes listed in the above mentioned and subsequent arinc specifications.

Arinc specification 429 part 1 page 6 20 digital information transfer system standards. It defines the physical and electrical interfaces of a two wire data bus and a data protocol to support an aircrafts avionics local area network. Beginning with release 71 of the firmware several improvements have been made to the arinc 429 decoder.

Datair 400m3sw arinc 429 label definition software. Arinc 429 defines bits 11 29 as those containing the words data information. 12 changes comments on gama publication no.

216 data standards contd commentary contd the result of subtracting each value from 360. The arinc429 specification is a copy written document owned by aeronautical radio inc. The vast majority of those pertain to the symbolic decoding driven by the user label definition files.

11 should be submitted to. 1 ait arinc 429 protocol. The arinc 429 bus has been around now for over two decades and this article is intended to refresh us with its structure and definition.

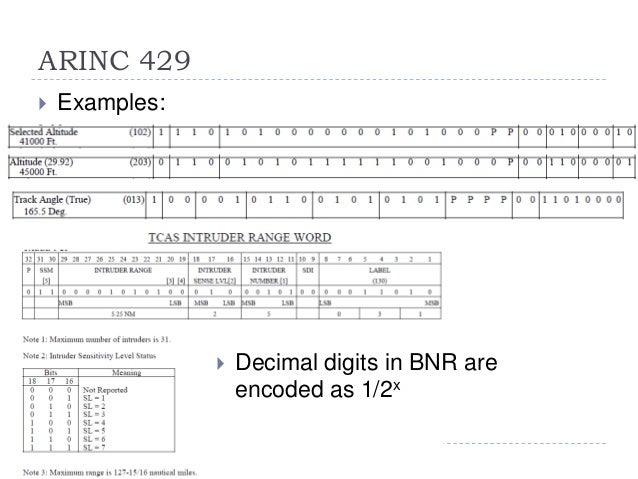

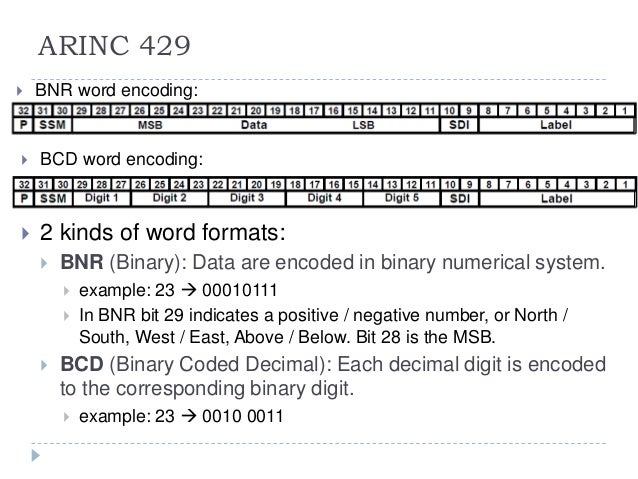

Thus the code for 181o is the twos complement of the code for 179o. When transmitting data words on the arinc bus the label is transmitted first msb first followed by the rest of the bit field lsb first.
